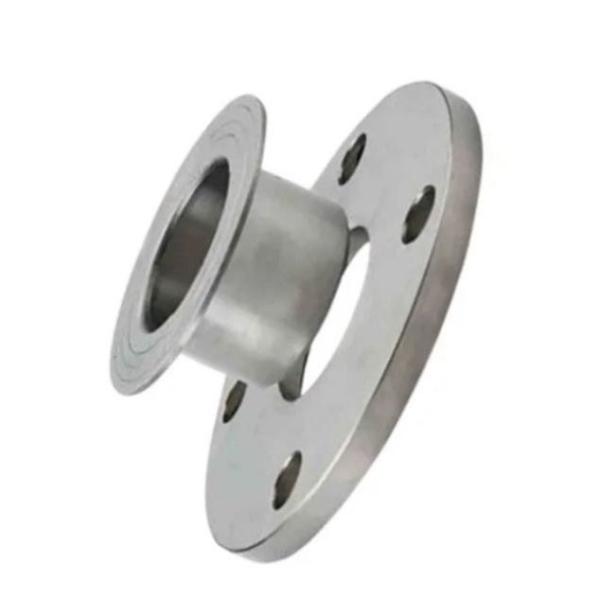

Nickel Alloy Loose Type Flange High Pressure Rating LJRF Lap Joint Flanges for Offshore Field

  • 1
  • 2

Brand Name : DINGSCO

Model Number : According to customers' requests

Certification : ISO 9001：2015, PED 2014/68 EU, API 6A, API-20B, TSG, NORSOK

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : Negotiable

Delivery Time : (Sample order) 7 days

Packaging Details : According to customers' requests

Product Name : Lap Joint Flanges LJRF Nickel Alloy Loose Flanges High Pressure Rating Offshore Field

Material : Nickel Based Alloy

Pressure Rating : 150#, 300#, 600#, 900#, etc

Dimensions : As per your Drawings

Applications : Offshore, Oil & Gas, Shipbuilding, Water System, Pipe Projects, Electric Power, etc.

Grade : Monel,Inconel,Incoloy,Hastelloy,etc

Contact Now

Lap Joint Flanges LJRF Nickel Alloy Loose Flanges for High Pressure Rating Offshore Field

This type of connection is used for piping in high-cost raw materials like as stainless steel and nickel alloy as it helps to reduce the overall cost of the needed flange connections. A lap joint connection is made by the combination of a stub end (which is the part welded to the pipe) and a backing flange, or lapped flange.

Lap Joint pipe flanges are used with Stub ends to make the flange connections in pipeline systems. These come in ½” to 24” sizes, in 150# , 300#, 400#, 600#,etc pressure class. A stainless steel stub end can be for example used in combination with a carbon steel lap joint flange to have a dependable welded connection at a cheaper cost than a full stainless steel connection (less stainless steel is needed, hence the cost is lower). Lap joint flanges have generally a raised face flange and are sealed with flat ring gasket.

Nickel Alloy Loose Type Flange High Pressure Rating LJRF Lap Joint Flanges for Offshore Field

Nickel Alloy Loose Type Flange High Pressure Rating LJRF Lap Joint Flanges for Offshore Field
